Components & Locking Systems

Highly engineered feet need highly engineered components. Typically, catastrophic failures happen at the component level. College Park carefully designed our line of endo components using the highest grade of titanium, stainless steel, and aluminum for superior outcomes and peace of mind. College Park’s robust line of endoskeletal components can provide the right solution for almost any prosthesis.

A good locking system is also key to a functional, reliable prosthesis. Made with high strength nylon, College Park’s C100 shuttle lock and accessories can give amputees the confidence to go through the day with a pin-lock system.

Category:
Request a Quote

Heavy Duty/Economy

HEAVY DUTY

Material: Stainless Steel | Weight Limit: 400 lbs (181 kg)

Component Build Height Weight Part Number
LOW-PROFILE TUBE ADAPTER, 250mm
LOW-PROFILE TUBE ADAPTER

250 mm
34 mm diameter

 57 mm (MIN) 302 g (MAX) TA S250 34
LOW-PROFILE TUBE ADAPTER, 430mm
LOW-PROFILE TUBE ADAPTER

430 mm/ 34 mm diameter

 57 mm (MIN) 425 g (MAX) TA S430 34
TUBE CLAMP
TUBE CLAMP

34 mm diameter

 55 mm 146 g TC S 34
4-HOLE PYRAMID ADAPTER, Standard
4-HOLE PYRAMID ADAPTER

Standard

 7 mm 118 g 4HPA S
4-HOLE PYRAMID RECEIVER, Standard
4-HOLE PYRAMID RECEIVER

Standard

 17 mm 75 g 4HPR S
THREADED ADAPTER W/HOLE
THREADED ADAPTER W/HOLE

Threaded Adapter to be used with the 3- or
4-Prong Rotatable Lamination Anchor

 TAH S

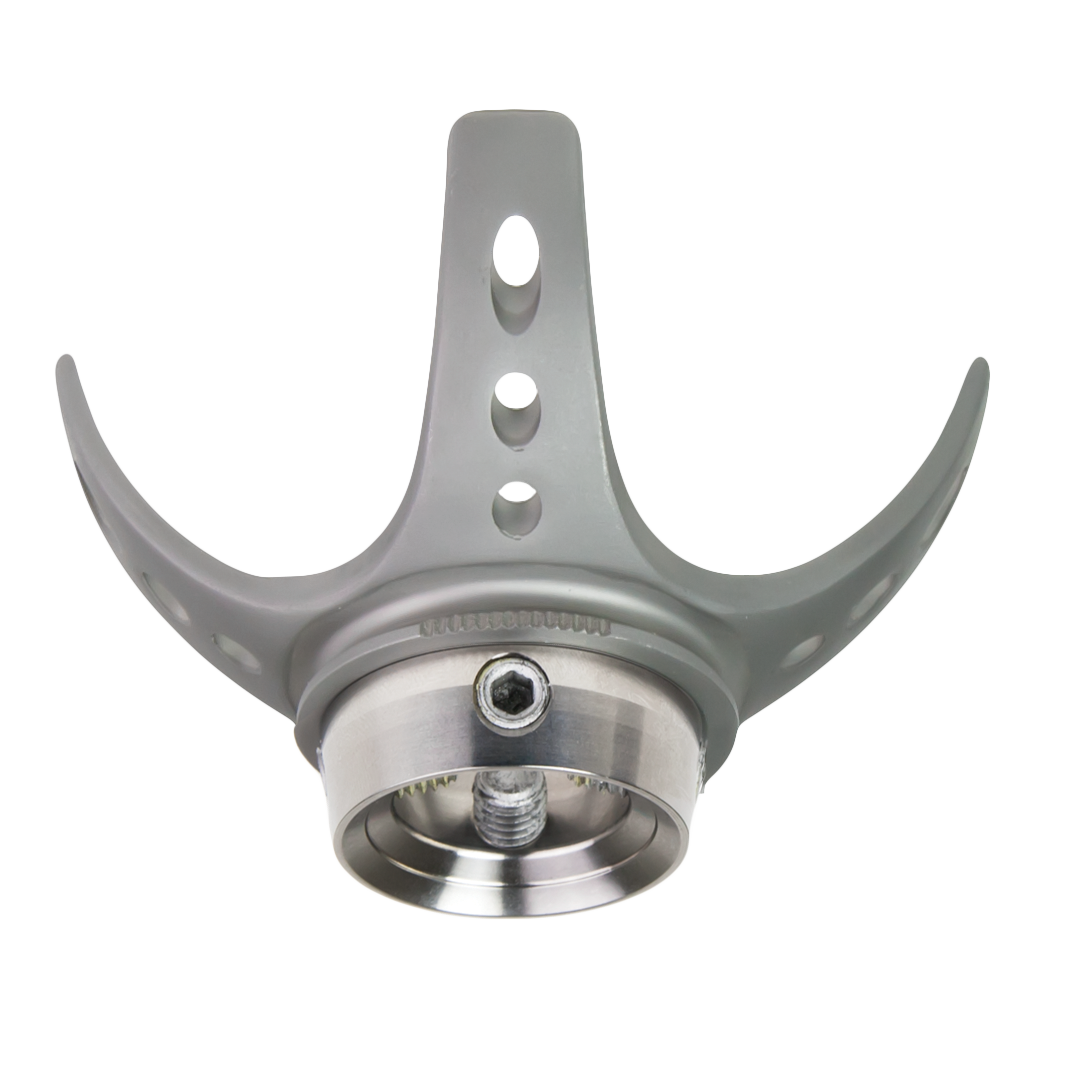

3-PRONG ANCHOR, WITH RECEIVER, ROTATABLE
3-PRONG ANCHOR, WITH RECEIVER, ROTATABLE
 3PA RR S

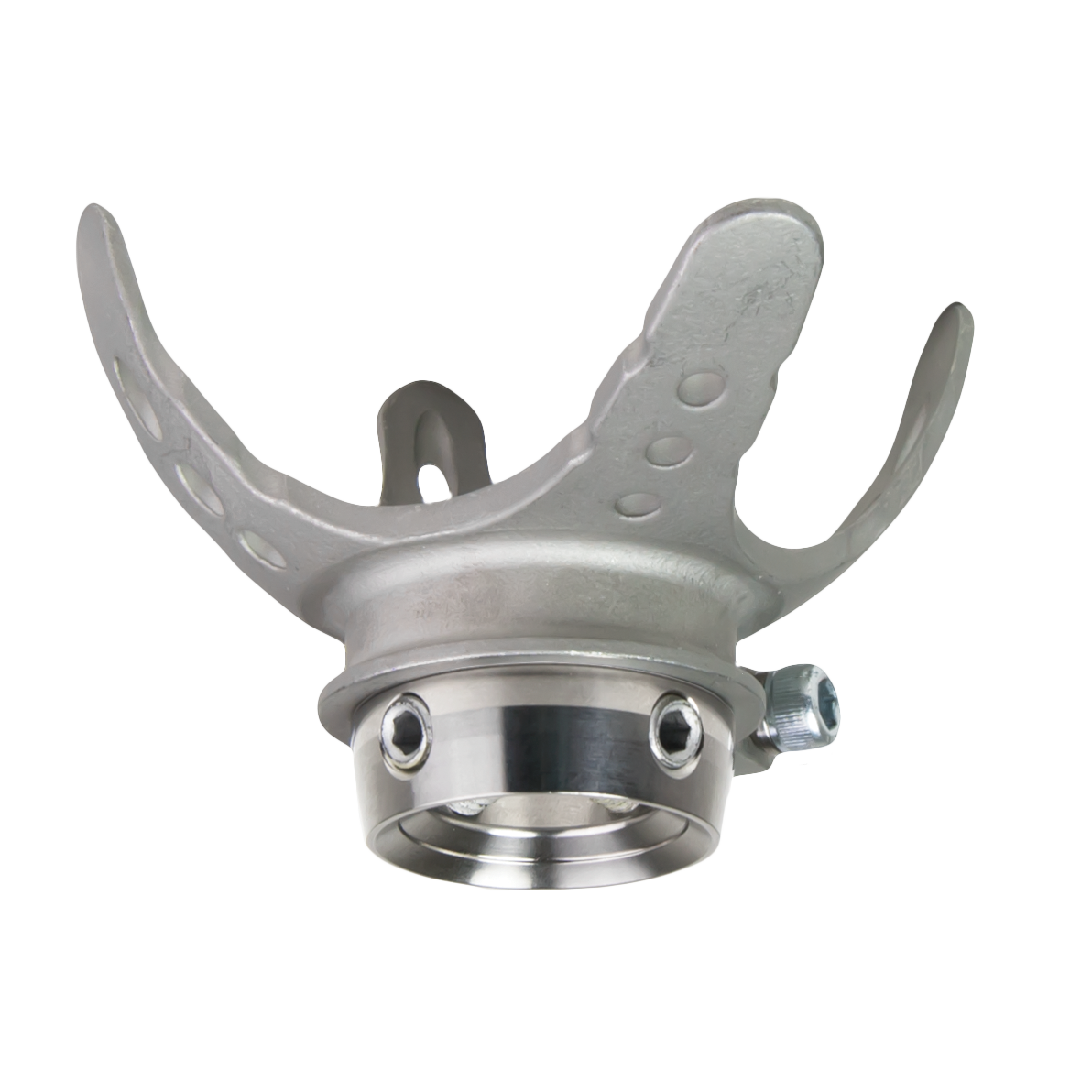

4-PRONG ANCHOR, WITH RECEIVER, ROTATABLE
4-PRONG ANCHOR, WITH RECEIVER, ROTATABLE
 4PA RR S

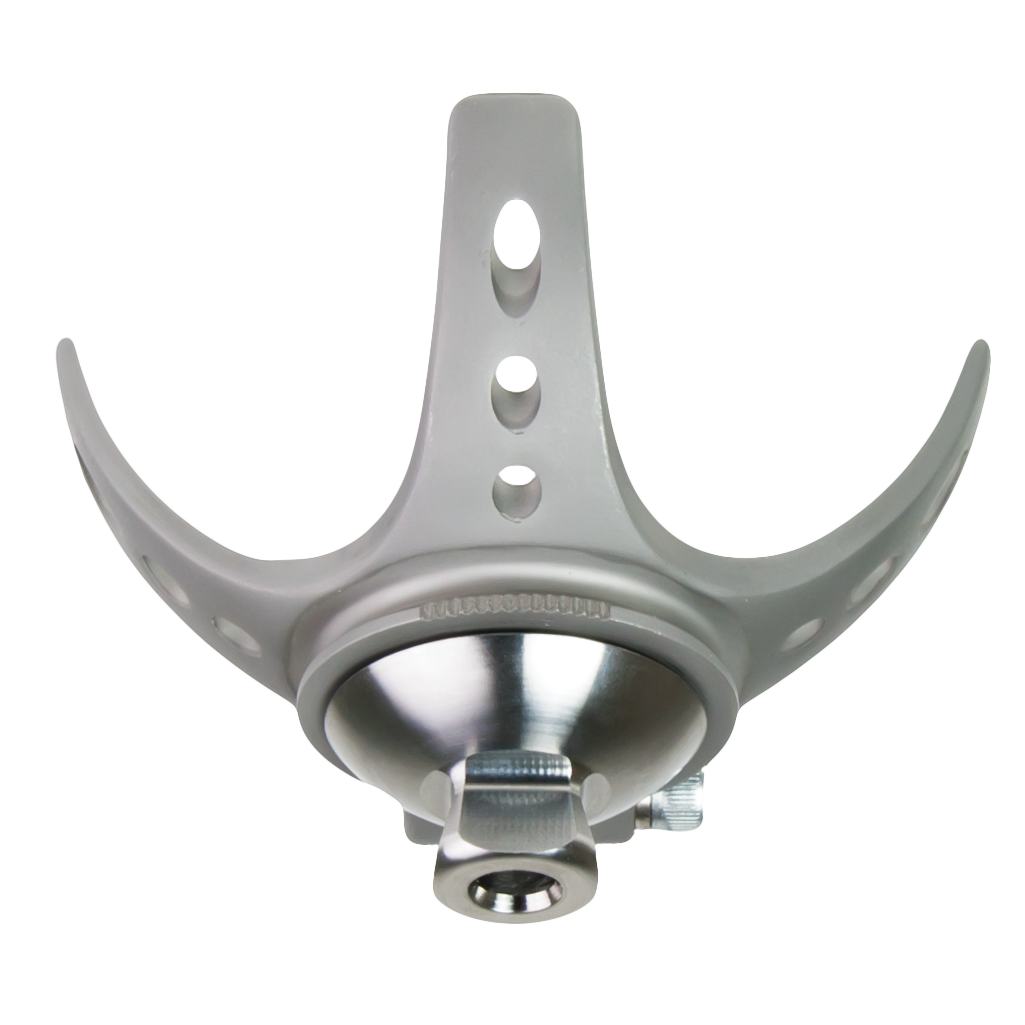

3-PRONG ANCHOR, WITH ADAPTER W/HOLE, ROTATABLE
3-PRONG ANCHOR, WITH ADAPTER W/HOLE, ROTATABLE
 3PA AHR S

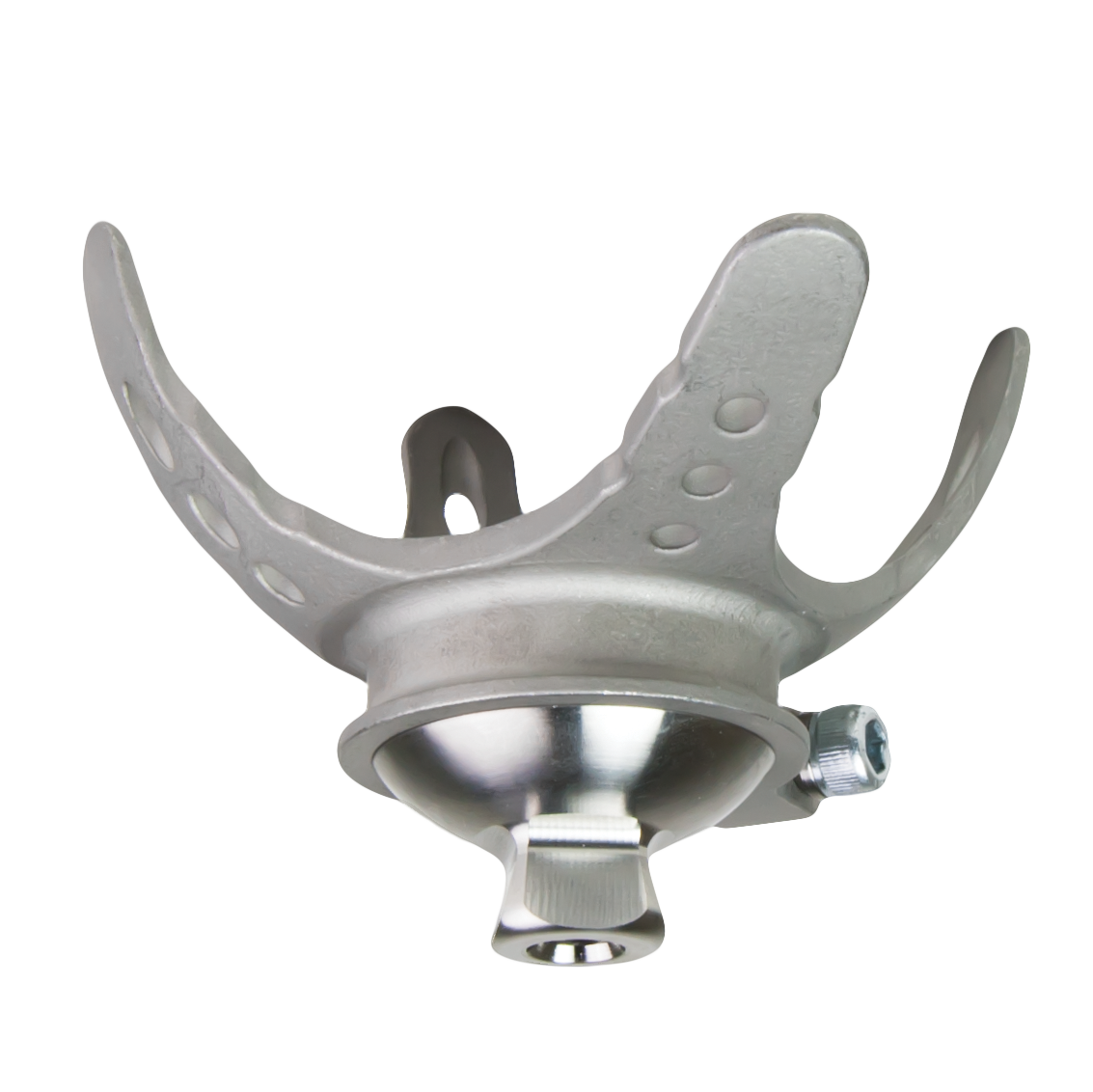

4-PRONG ANCHOR, WITH ADAPTER W/HOLE, ROTATABLE
4-PRONG ANCHOR, WITH ADAPTER W/HOLE, ROTATABLE
 4PA AHR S
ECONOMY

Material: Stainless Steel | Weight Limit: 300 lbs (136 kg)

Components Build Height Weight Part Number
LOW-PROFILE TUBE ADAPTER, 250mm
LOW-PROFILE TUBE ADAPTER

250 mm
30 mm diameter

 75 mm (MIN) 303 g (MAX) TA S250 30
LOW-PROFILE TUBE ADAPTER, 430mm
LOW-PROFILE TUBE ADAPTER

430 mm/ 30 mm diameter

 57 mm (MIN) 418 g (MAX) TA S430 30

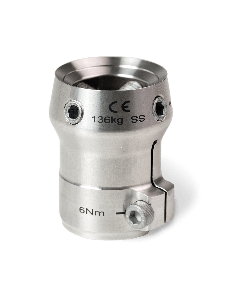

TUBE CLAMP
TUBE CLAMP

30 mm diameter

 51 mm 140 g TC S 30

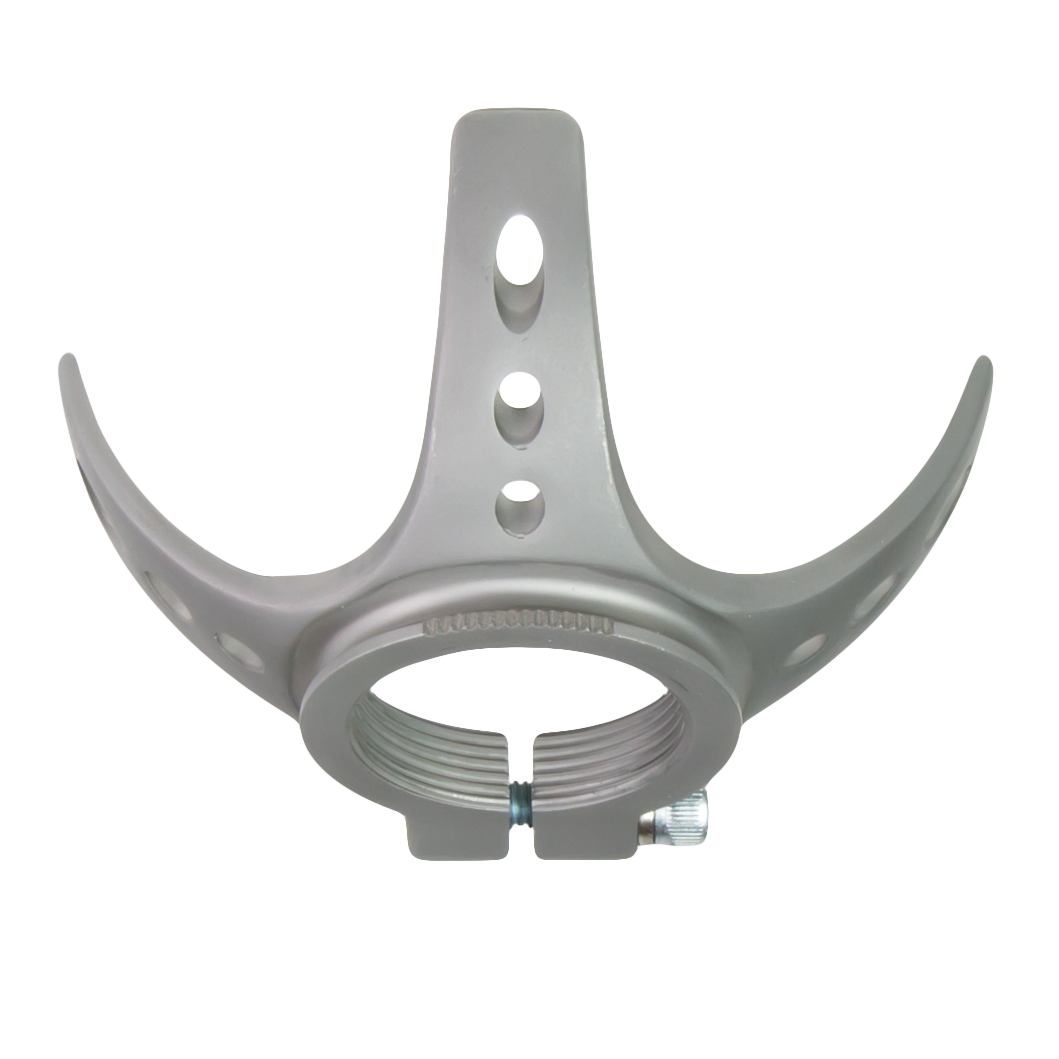

3-PRONG ANCHOR, ROTATABLE
3-PRONG ANCHOR, ROTATABLE
 3PA R

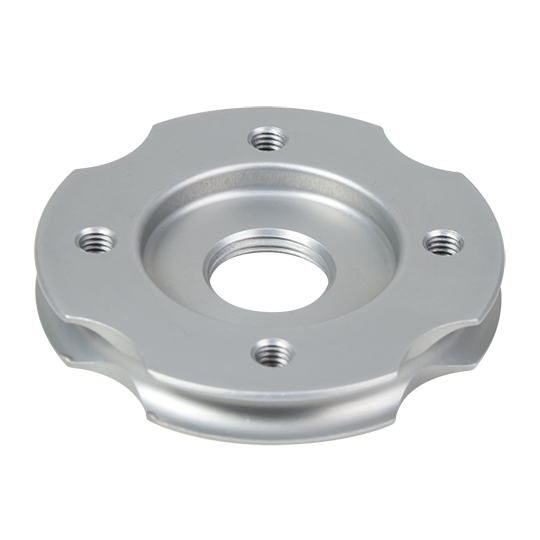

4-HOLE LAMINATION PLATE, ROUND
4-HOLE LAMINATION PLATE, ROUND,
THREADED HOLE, TIE GROOVE
 4HLP RTG A

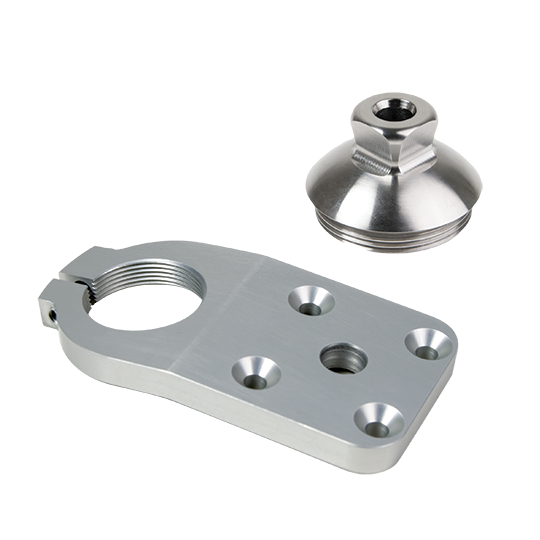

4-HOLE THREADED FLEXION PLATE, 10 DEG, WITH ADAPTER WP-L HOLE, ROTATABLE
4-HOLE THREADED FLEXION PLATE, 10 DEG,
WITH ADAPTER WP-L HOLE, ROTATABLE
 4HTP 10 AHR S

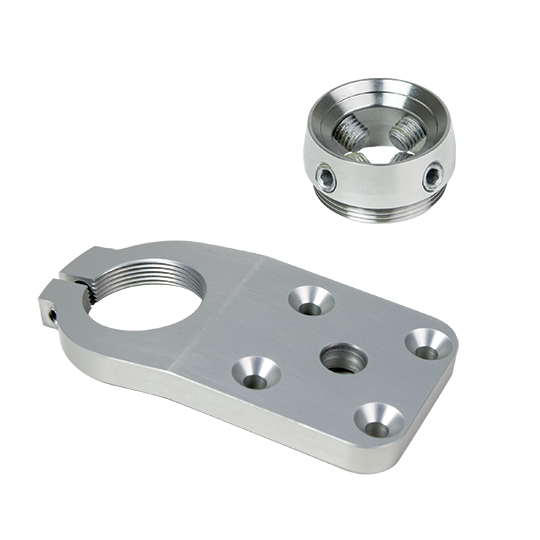

4-HOLE THREADED FLEXION PLATE, 10 DEG, W/RECEIVER, ROTATABLE
4-HOLE THREADED FLEXION PLATE, 10 DEG,
W/RECEIVER, ROTATABLE
 4HTP 10 RR S

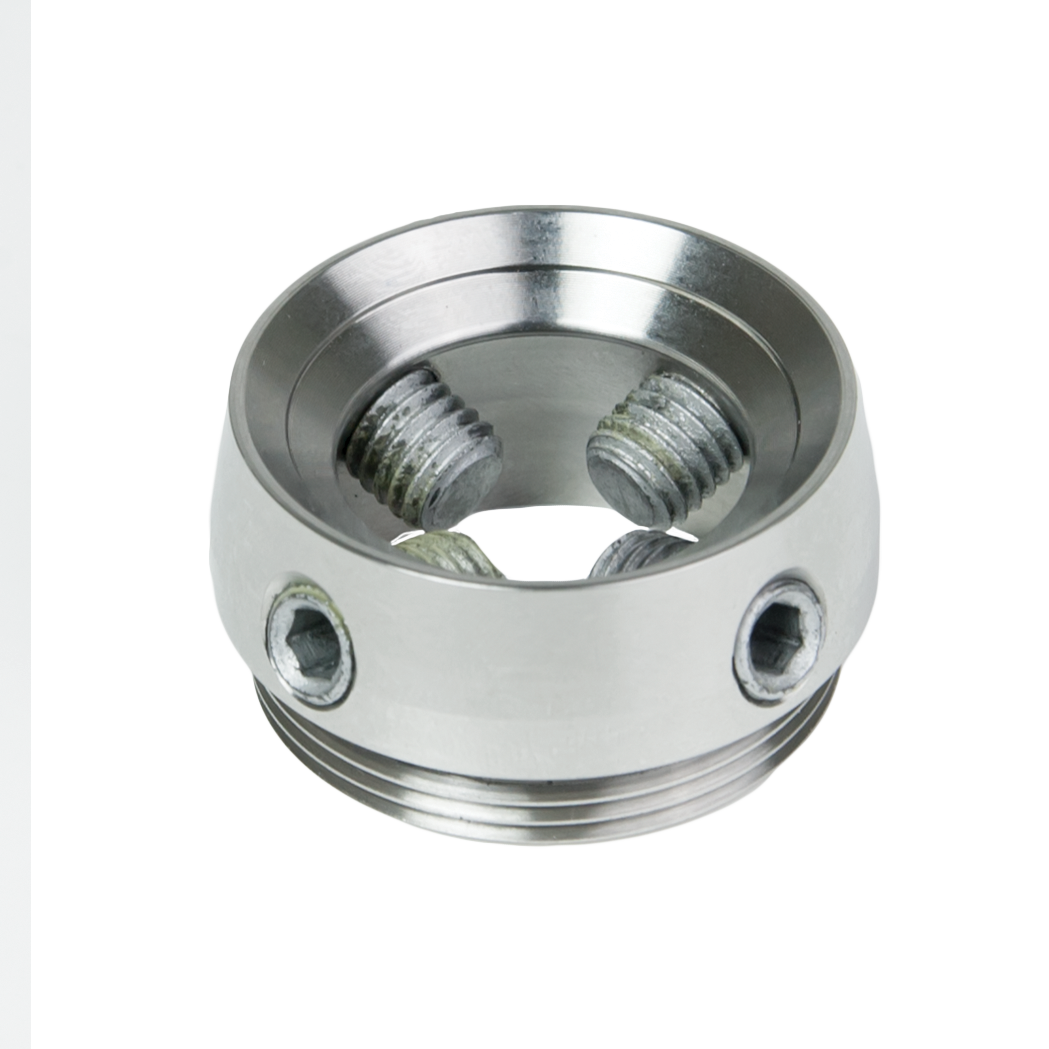

THREADED RECEIVER
THREADED RECEIVER
 TR S

Titanium

Material: Titanium | Weight Limit: 300 lbs (136 kg)

  Component Build Height Weight Part Number
LOW-PROFILE TUBE ADAPTER, 250mm
LOW-PROFILE TUBE ADAPTER

250 mm
30 mm diameter

 57 mm (MIN) 221 g (MAX) TA T250 30
LOW-PROFILE TUBE ADAPTER, 430mm
LOW-PROFILE TUBE ADAPTER

430 mm/30 mm diameter

 57 mm (MIN) 337 g (MAX) TA T430 30
4-HOLE PYRAMID RECEIVER, Rotatable
4-HOLE PYRAMID RECEIVER

Rotatable

 19 mm 90 g 4HPRR T
4-HOLE PYRAMID ADAPTER, w/Pin-Lock Hole
4-HOLE PYRAMID ADAPTER

w/Pin-Lock Hole

 7 mm 44 g 4HPH T
4-HOLE PYRAMID ADAPTER, w/Pin-Lock Hole Rotatable
4-HOLE PYRAMID ADAPTER

w/Pin-Lock Hole Rotatable

 7 mm 74 g 4HPHR T
TUBE CLAMP
TUBE CLAMP

30 mm diameter

 51 mm 82 g TC T 30
TUBE CLAMP
LOW PROFILE THREADED
CONNECTOR, Ti
 LPTC T

Pediatric

Pediatric

Material: Titanium | Weight Limit: 165 lbs (75 kg)

Component Build Height Weight Part Number
LOW-PROFILE TUBE ADAPTER*, 300mm
LOW-PROFILE TUBE ADAPTER*

300 mm
22 mm diameter

 47 mm (MIN) 169 g (MAX) TA T300 22
TUBE CLAMP, 22mm
TUBE CLAMP*

22 mm diameter

 39 mm 46 g TC T 22

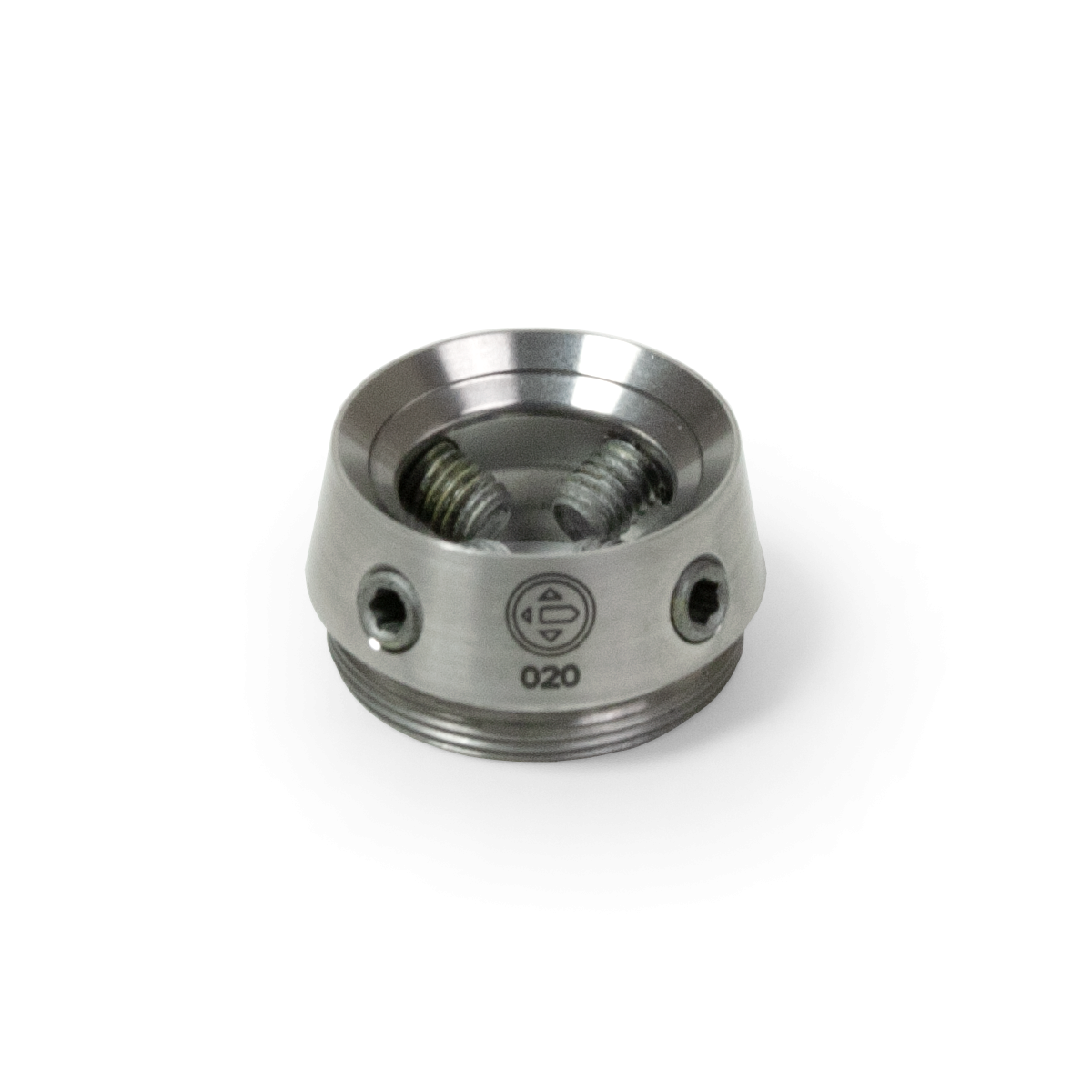

SCOUT THREADED RECEIVER
SCOUT THREADED RECEIVER
 TR SP

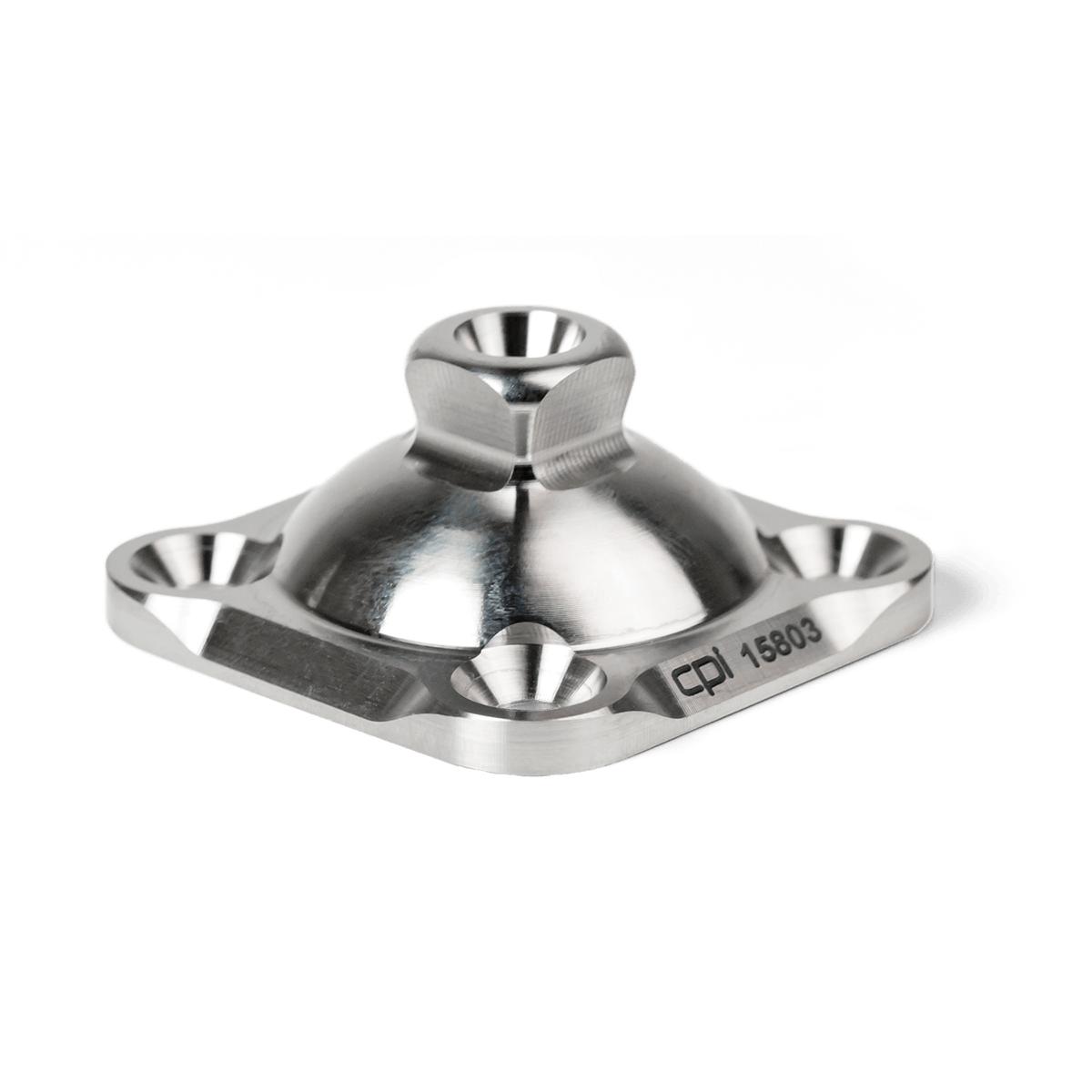

4-HOLE PYRAMID ADAPTER
4-HOLE PYRAMID ADAPTER
 8 mm 36 g 4HPA TP

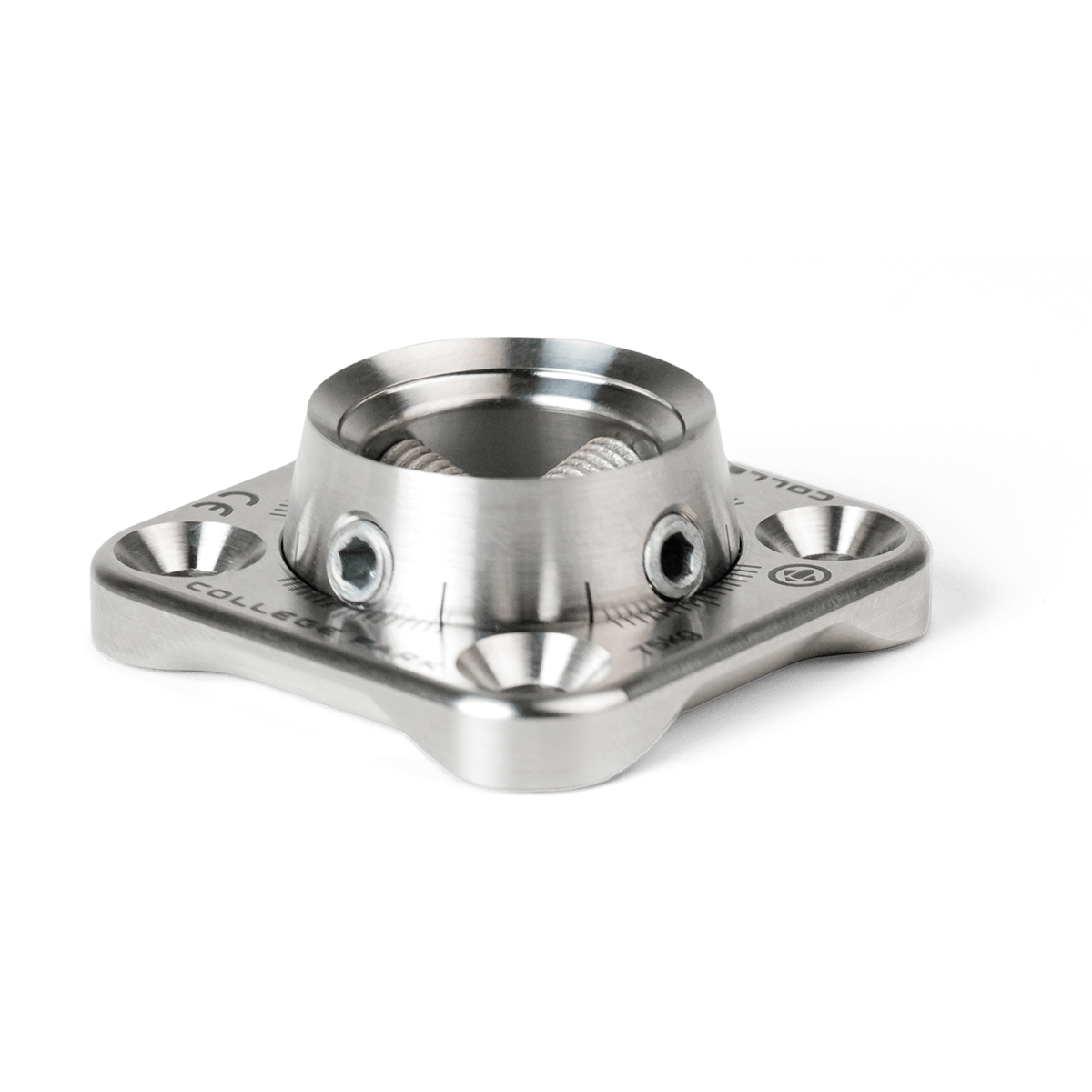

4-HOLE PYRAMID RECEIVER, ROTATABLE
4-HOLE PYRAMID RECEIVER, ROTATABLE
 16 mm 50 g 4HPRR TP
